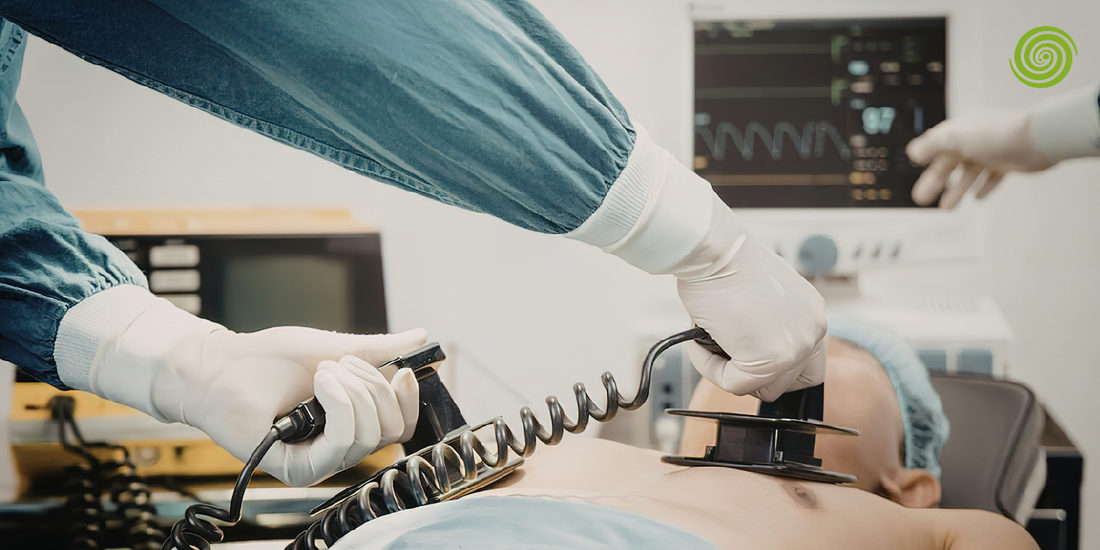

Desfibriladores
Clinical and technical guide · AHA 2025 Guidelines · For doctors, institutions, and companies · Colombia 2026

Defibrillators: what they are, types, how they work, and how to choose the right one for your environment

From an AED in a company reception area to a manual biphasic defibrillator in the ICU — everything you need to know about defibrillators, updated with the AHA 2025 Guidelines

Defibrillators AED · AED Biphasic vs. monophasic Ventricular fibrillation Chain of survival AHA 2025 Guidelines Colombia 2026
❤️
Reviewed by the GSMED Imaging technical-clinical team
Content based on the AHA 2025 Guidelines for CPR and ECC (November 2025), the ACC/AHA 2025 Guidelines for the use of defibrillators and cardiac resynchronization, the ILCOR 2023 consensus, and Colombian sources from UNAL and SIAC (Inter-American Society of Cardiology). Updated with the changes to the AHA 2025 unified chain of survival.
Published: April 2026 AHA 2025 Guidelines — November 2025 Sources: AHA · ACC · ILCOR 2023 · SIAC · UNAL
⚠️ Critical medical notice: This guide is for informational and educational purposes. Defibrillators must be used in emergency situations within the framework of institutional CPR protocols and under appropriate certified training. This information does not replace training in basic life support (BLS) and advanced life support (ALS). In the event of a real cardiac arrest, call emergency services immediately.

Every minute without defibrillation in ventricular fibrillation reduces the chances of survival by 7 to 10%. After 10 minutes without treatment, survival is virtually zero. The defibrillator is the only effective treatment for the most common lethal heart rhythm in adults — and the speed with which one can be accessed is, quite literally, the difference between life and death.


1. What is a defibrillator and how does it work?

A defibrillator is a medical device that delivers a high-energy electric shock through the chest to the heart muscle. The goal is not to "jump-start" the heart — it is to stop the electrical chaos of ventricular fibrillation. When the heart enters fibrillation, thousands of heart cells contract in a disorganized and simultaneous manner: there is no effective pumping of blood. The electric shock "resets" all the cells synchronously, allowing the heart's natural pacemaker (the sinoatrial node) to take control and restore an organized rhythm.

The principle is simple, but the technical execution is precise. The defibrillator analyzes the heart rhythm (automatically in AEDs, manually by a doctor in clinical devices), calculates the energy required based on the patient's transthoracic impedance, and delivers the shock in milliseconds with a biphasic waveform that maximizes effectiveness and minimizes myocardial damage.

7–10%
Drop in survival for every minute without defibrillation in VF
90%
Possible survival if the AED is used within the first 3 minutes
7.9%
Of out-of-hospital cardiac arrests where an AED was used — a huge access gap (AHA 2025)
40%
Less energy required with a biphasic defibrillator vs. monophasic
The most important fact — and the one almost no one cites According to the AHA 2025 Guidelines (citing data from the U.S.), an AED is used in only 7.9% of out-of-hospital cardiac arrests, despite ventricular fibrillation being the initial rhythm in 25–40% of them. In Colombia, access to and use of an AED is even lower. This gap is not about technology — it is about availability, rapid access, and training.

2. When is a defibrillator indicated and NOT indicated?

This is the most critical clinical knowledge about defibrillators — and the one that causes the most errors among non-specialized personnel:

✅
SHOCKABLE rhythms — use the defibrillator
The defibrillator is indicated only for these two cardiac arrest rhythms:

1. Ventricular fibrillation (VF): the most common rhythm in adult cardiac arrest. The heart "quivers" without pumping. The shock can end the chaos and restore the rhythm.

2. Pulseless ventricular tachycardia (pVT): the heart beats very fast but does not generate effective flow. It also responds to an electric shock.
→ VF and pVT: immediate defibrillation
❌
NON-SHOCKABLE rhythms — DO NOT use the defibrillator
The defibrillator has no effect on these rhythms:

Asystole: flatline — there is no electrical activity. A shock in asystole produces no benefit. Only high-quality CPR and management of reversible causes.

Pulseless electrical activity (PEA): there is electrical activity but no pulse. Reversible causes (H&T): hypovolemia, hypoxia, pneumothorax, tamponade, thrombosis.
→ Asystole and PEA: CPR only + treat causes
Why this matters with the AED Automated external defibrillators (AEDs) automatically analyze the rhythm and only recommend a shock when they detect VF or pVT. If the rhythm is asystole, the AED will say "shock not recommended" — not because it is broken, but because defibrillation at that moment would not help. The instruction is always to continue CPR and activate emergency services.

3. The AHA 2025 chain of survival: the context where the defibrillator saves lives

The AHA 2025 Guidelines published in November 2025 establish a unified chain of survival for in-hospital and out-of-hospital cardiac arrest in adults and children. The defibrillator occupies the third critical link:

Link 1
🛡️
Prevention and preparation
Link 2
📞
Recognition and activation of the system
Link 3 ★
⚡
High-quality CPR + early defibrillation
Link 4
🚑
Advanced life support
Link 5
🏥
Post-arrest care
Link 6 (new)
🔄
Recovery

The AHA 2025 introduces the 6th link of Recovery as a new addition to this version — recognizing that discharge survival is not the end of the process but the beginning of physical and neurological rehabilitation. It also unifies the chain for in-hospital and out-of-hospital settings, and explicitly promotes mandatory community CPR training and access to AEDs and naloxone in public spaces.

4. Types of defibrillators: complete classification

🟢 AED / AED — Automatic external defibrillator AED in English
Portable device designed to be used by people without medical training. It automatically analyzes the heart rhythm and guides the user with step-by-step voice instructions. It delivers the shock automatically (automatic) or tells the user when to press the button (semi-automatic — the most common in public spaces). Biphasic technology. Disposable adhesive pads.
→ Airports · Shopping malls · Companies · Schools · Sporting events · Public spaces
🔵 Manual defibrillator-monitor Monitor · cardioverter
Clinical equipment for exclusive use by trained medical and nursing personnel. The doctor interprets the rhythm on the monitor, manually selects the energy, and delivers the shock with paddles or pads. It integrates continuous ECG, SpO₂, non-invasive blood pressure (NIBP), and respiratory rate monitoring. It also allows synchronized cardioversion and external transcutaneous pacing. Biphasic technology in all current models.
→ ICU · Emergency room · Operating room · Coronary care units · Advanced medical ambulances
🟣 Portable defibrillator (vest / vest) WCD — wearable
Portable external defibrillator vest that the patient wears continuously for weeks or months. It monitors the heart rhythm 24/7 and automatically delivers a shock if it detects a lethal arrhythmia, before the patient loses consciousness. Temporary alternative to an implantable ICD in patients waiting for one or recovering from a recent heart attack. Highly indicated in patients with severely reduced LVEF ≤35%.
→ Recent post-MI patients · ICD waiting period · Cardiomyopathies with transient LVEF ≤35%
🔴 ICD — Implantable cardioverter-defibrillator ICD in English
Device surgically implanted under the chest skin with leads to the heart. It permanently monitors the heart rhythm and delivers the shock internally when it detects VF or pVT — the patient feels a "kick in the chest". The ACC/AHA 2025 Guidelines updated the indications: LVEF ≤35% with symptoms despite optimal medical treatment for ≥3 months, secondary prevention after an episode of VF or pVT, high-risk genetic cardiomyopathies (Brugada, arrhythmogenic cardiomyopathy).
→ Primary and secondary prevention of sudden cardiac death · High-risk cardiology

5. Biphasic vs. monophasic: the comparison that matters when buying

Monophasic — old technology
Current: One direction, fixed polarity
Typical energy: 200 J → 300 J → 360 J (escalation)
Myocardial damage: Greater — higher energy dose
Impedance adjustment: No — fixed dose independent of the patient
Efficacy in VF: Lower — especially in obese or thin patients
Status in 2026: Discontinued in new equipment. Only in old stock
When to use it: Only if no biphasic is available — same protocol
Biphasic — current standard
Current: Two phases — changes polarity during the shock
Typical energy: 120–200 J (first shock) depending on the manufacturer
Myocardial damage: Lower — less energy with equal or greater effectiveness
Impedance adjustment: Yes — the duration and waveform adapt to the patient
Efficacy in VF: Equal or superior to monophasic with up to 40% less energy
Status in 2026: Universal standard in all new equipment
When to use it: Always — it is the first choice
AHA 2025 Update — energy for AF cardioversion The AHA 2025 Guidelines updated the recommendation on the initial energy for synchronized cardioversion of atrial fibrillation (AF) and atrial flutter: ≥200 J is preferred for the first shock, instead of starting with lower energies as previously recommended. This is relevant for manual defibrillator-monitors used in the hospital setting for elective cardioversion.

6. The AED step-by-step: what the device does and what the user does

  • Step 1 — Turn on the AED: open the cover or press the power button. The AED immediately begins giving voice instructions in the configured language. No prior knowledge is necessary — the device guides the entire process.
  • Step 2 — Place the pads: the AED includes adhesive pads with drawings showing exactly where to place them. Pad 1: under the patient's right clavicle. Pad 2: left side, under the armpit. Dry and clean skin — if there is excessive hair, shave it with the razor included in some kits.
  • Step 3 — Rhythm analysis: the AED says "do not touch the patient" and analyzes the rhythm automatically for 5–15 seconds. No one should touch the patient during this analysis — any movement generates artifact.
  • Step 4 — Shock (if indicated): if the AED detects VF or pVT, it says "shock recommended — do not touch the patient" and charges automatically. In semi-automatic models (the most common), the user presses the flashing button when the AED indicates. Visually verify that no one is touching the patient before pressing.
  • Step 5 — Immediate post-shock CPR: immediately after the shock, without waiting to see the rhythm, start high-quality CPR for 2 minutes. Then the AED will analyze the rhythm again and repeat the cycle if necessary.
  • If the AED says "shock not recommended": continue CPR. It does not mean the patient is fine — it means the rhythm is not shockable at this moment. Follow the AED instructions and wait for emergency services to arrive.

7. Real scenarios: what defibrillator each environment needs

🏢
Company, corporate office, or high-traffic building
"We have 300 employees at the headquarters. Are we required to have an AED? Which one do we need?"
In Colombia, the requirement varies by municipal regulation — Bogotá and some cities have regulations. But beyond the legal obligation, an AED in a company with 300 employees is a workplace safety investment with a clear return. The recommended equipment is a semi-automatic AED with voice instructions in Spanish, adult and pediatric pads included, and battery capacity for at least 200 shocks or 4 hours of monitoring. The target response time is less than 3 minutes from cardiac arrest to the first shock.
🏥
ICU, emergency room, or coronary care
"We are equipping a 10-bed ICU. What defibrillator do we need and how many?"
For an ICU, a manual biphasic defibrillator-monitor is required with at least a 3-lead ECG (ideally 12), SpO₂ and NIBP monitoring, capnography (EtCO₂ — recommended by AHA guidelines to assess CPR quality), external transcutaneous pacing, and synchronized cardioversion. The recommendation is 1 device for every 4–6 active ICU beds, plus at least 1 backup unit in the unit. Advanced life support ambulances should carry at least 1 biphasic monitor device.
🏫
School, sports center, or sports facility
"Our school has 800 students and we hold sporting events. Is one AED enough?"
For sports facilities, the recommendation is 1 AED for each area of intensive use, with clear visibility and standardized signage. At sporting events with more than 500 people, it is recommended to have staff trained in CPR and at least 2 available AEDs. Pediatric defibrillators (with adapted pads and energy doses) are important in schools where children are the primary users. AHA 2025 explicitly promotes community CPR training and access to AEDs in all public spaces.

8. When NOT to use the defibrillator — situations that cause confusion

⚠️ The defibrillator is NOT indicated in these situations
Asystole (flatline) — the shock has no beneficial effect
Pulseless electrical activity (PEA) — there is a rhythm but no pulse; treat the causes
Conscious patient with a pulse — even if they have an arrhythmia, it is not cardiac arrest
Pulseless ventricular tachycardia — requires synchronized cardioversion, not unsynchronized defibrillation
Patient in a wet environment without having been moved to a dry surface
Over an implanted device (pacemaker/ICD) — place the pad at least 8 cm from the device

9. Criteria for choosing a defibrillator: selection table

Environment Type of device Minimum features Key consideration
Public space / business Semi-automatic AED Spanish voice · Adult and pediatric pads · Battery ≥200 shocks · IP54 (resistant) Access time: the AED must be less than a 3-minute walk from any point in the facility
Basic ambulance AED or basic defibrillator-monitor Biphasic · Long-lasting battery · Vibration resistant · Basic ECG Portability and robustness — the device must work in variable temperature and humidity conditions
Advanced ambulance / medicalization Manual biphasic defibrillator-monitor 12-lead ECG · SpO₂ · NIBP · EtCO₂ · External pacemaker · Synchronized cardioversion Integration with the receiving hospital — compatibility with real-time ECG transmission systems
ICU / Coronary care Full biphasic monitor-defibrillator 12-lead ECG · SpO₂ · NIBP · EtCO₂ · Pacemaker · Synchronized cardioversion · Digital recording Capnography (EtCO₂) is recommended by the AHA to monitor CPR quality and detect return of spontaneous circulation (ROSC)
Operating room Integrated monitor-defibrillator Synchronized cardioversion · Pacemaker · Integration with anesthesia system · Internal pads (internal paddles available) Compatibility with cautery environment (electromagnetic interference) — look for devices with anti-interference filters
High-risk outpatient Implantable ICD or AED vest According to ACC/AHA 2025 indication: LVEF ≤35% · Symptoms despite TMO ≥3 months · Genetic cardiomyopathy ICD implant decision — requires evaluation by a certified cardiac electrophysiologist

10. Frequently asked questions about defibrillators

Can anyone use an AED without medical training?
Yes. AEDs are specifically designed to be used by people without medical training. Voice instructions guide every step of the procedure. In Colombia, legislation protects those who use the AED in good faith in an emergency situation — the implicit "Good Samaritan" in the regulations. However, having training in CPR and AED (4–8 hour courses available at entities such as the Colombian Red Cross) significantly improves the effectiveness of the response and the rescuer's confidence.
Can the AED deliver a shock to someone who DOES NOT need defibrillation?
No. AEDs analyze the heart rhythm with high precision before recommending any shock. They only recommend and deliver the shock if they detect VF or pulseless VT — rhythms that require defibrillation. If the patient has a pulse or any non-shockable rhythm, the AED will indicate "shock not recommended" and continue guiding CPR. This is one of the reasons why AEDs are safe for use by non-medical personnel.
How long does an AED battery last and how often is it replaced?
Most modern AEDs have lithium batteries with a standby life of 4–7 years (unused). Many devices have visible battery indicators and perform periodic self-diagnostics. Some models alert when the battery falls below the minimum threshold. Pads (electrodes) are consumables with a separate expiration date — generally 2 years — and must be replaced on that date regardless of whether they were used or not. The AED maintenance program should include: monthly review of the readiness indicator, semi-annual verification of the battery and pad expiration date, and maintenance log.
What is the difference between cardioversion and defibrillation?
Defibrillation: unsynchronized high-energy shock for VF or pulseless VT. The device does not synchronize with any ECG event — it delivers the shock immediately because in VF there is no organized rhythm to synchronize with. Synchronized cardioversion: shock synchronized with the R wave of the ECG, used for arrhythmias with an organized rhythm but with a rapid ventricular response (AF, flutter, supraventricular tachycardia, pulseless VT). Synchronization prevents the shock from falling in the vulnerable period of the cardiac cycle (T wave), which could trigger VF. Manual defibrillator-monitors have both functions — the physician selects "synchronized mode" for cardioversion.
How much does an AED cost in Colombia in 2026?
Mid-range AEDs available in Colombia (Philips HeartStart, Zoll AED Plus, Schiller Fred, Mindray BeneHeart) have prices ranging from $3,500,000 to $8,000,000 COP depending on the model, features, and included accessory package. Higher functionality devices (ECG screen, CPR feedback, connectivity) are more expensive. Manual defibrillator-monitors for the ICU have a very different price range — between $15,000,000 and $60,000,000 COP depending on the integrated monitoring features. Contact us for a specific quote according to your environment and needs.
